D&RGW Class 5r 40' Reefer

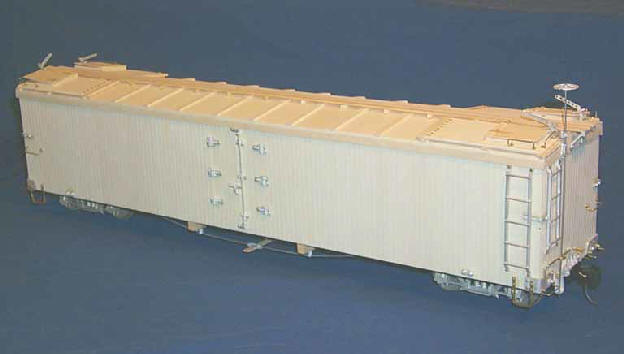

40 reefer side

The Class 5r Reefer is built with a 1/4" basswood frame, glued and nailed. Sides, ends, floor and roof halves are 1/8" lasered Poplar Plywood. Floor, sides and ends are scribed. Truss rods and brake staff are 16 gauge stainless steel. Side doors are 1/8" scribed Poplar Plywood. Side doors are fixed and do not work. Kit comes with the frame pre-assembled and all brake gear pre-drilled.

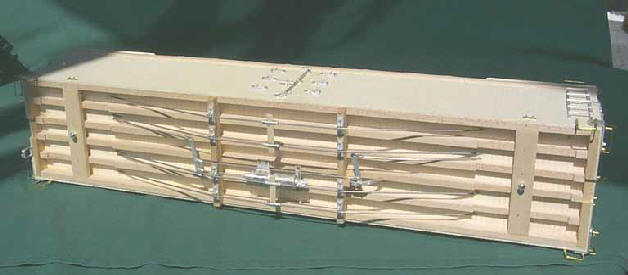

40 reefer bottom

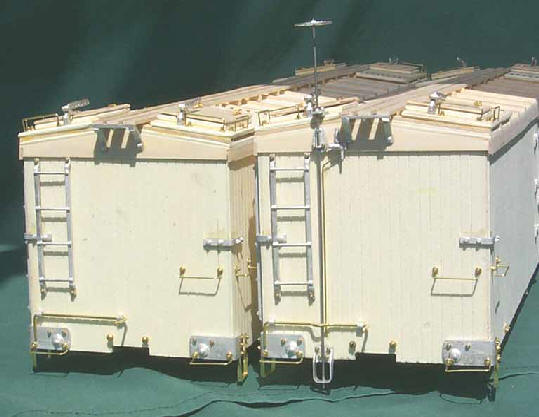

40 reefer A and B

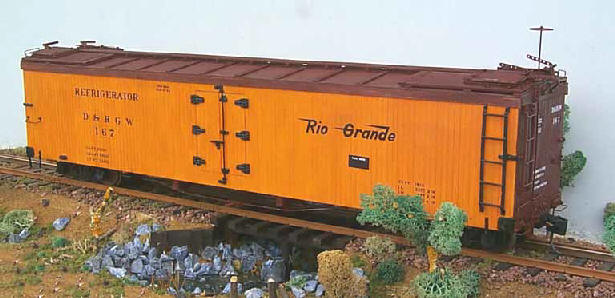

40 reefer paint 1

40 reefer paint 2

Part # PNG-004

Kit Form, less trucks and couplers.........................................................................................................................$90.00

Assembled Car, unpainted and unlettered, less trucks and couplers............................................................$135.00

************************* Pictures of couplers and trucks can be seen on the parts page ******************************

Kadee "E" series 901 couplers...................................................................................................................................$6.00

Accucraft 1:20.3 couplers............................................................................................................................................$5.00

PNG Andrews Strap Style Cast White Metal Sprung Trucks (with purchase of car only).............................$45.00

San Juan Wet Decals in "Flying Rio Grande" or Moffit Tunnel "Toilet Seat" (due 7-1-2012).........................$13.00



Dimensions:

Length...........................................23.75"

Width...................................4.75"

Height, sill to catwalk............4.625"

Weight, with trucks...............2 lb. 14oz.

Shipping Weight (approx.)......4 lb. 6 oz.
